Applications:

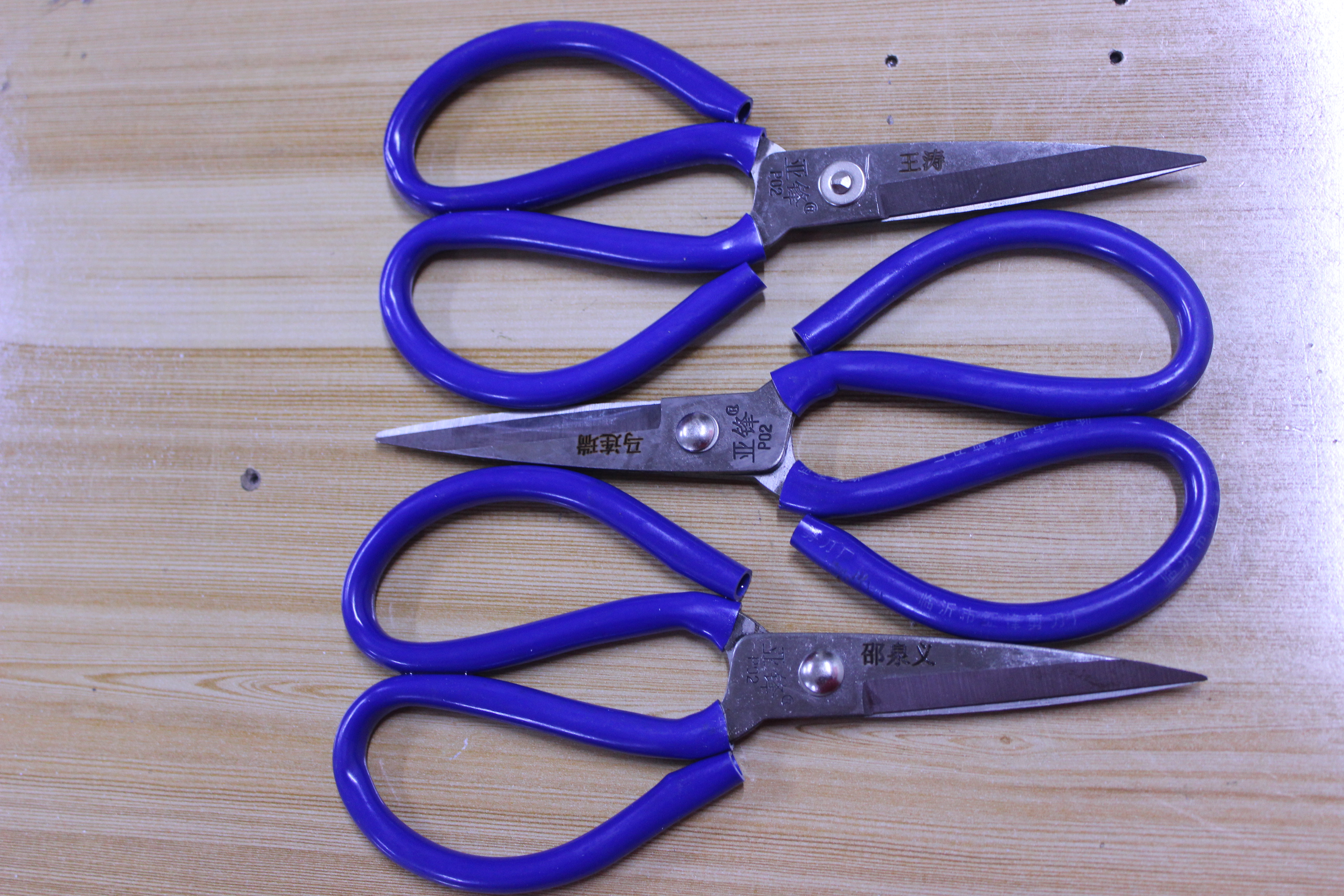

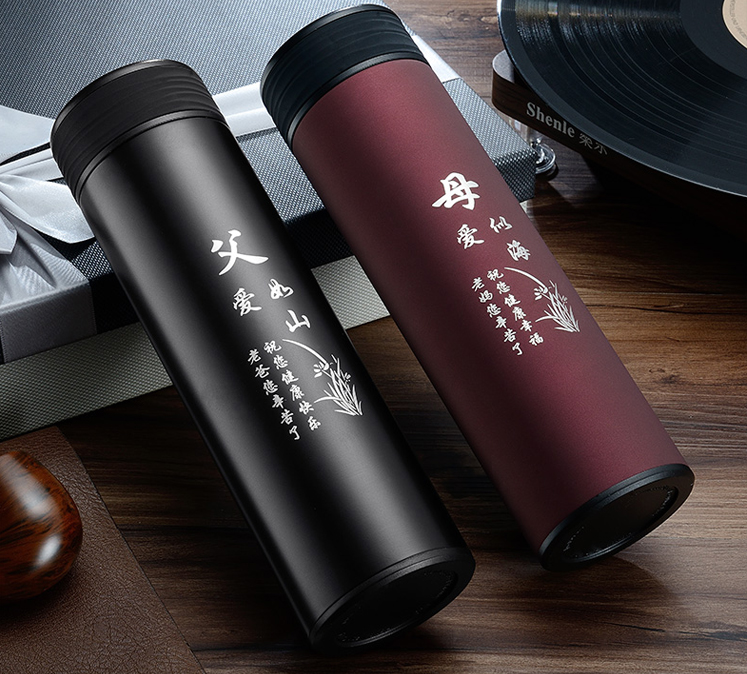

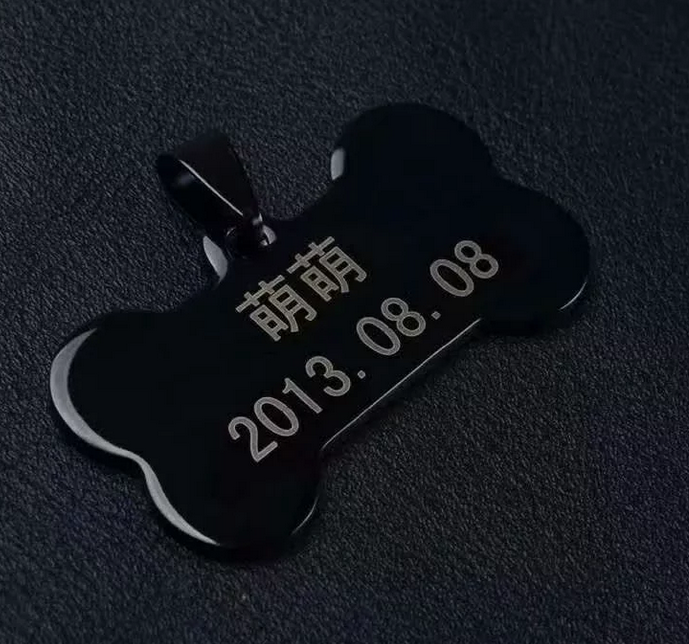

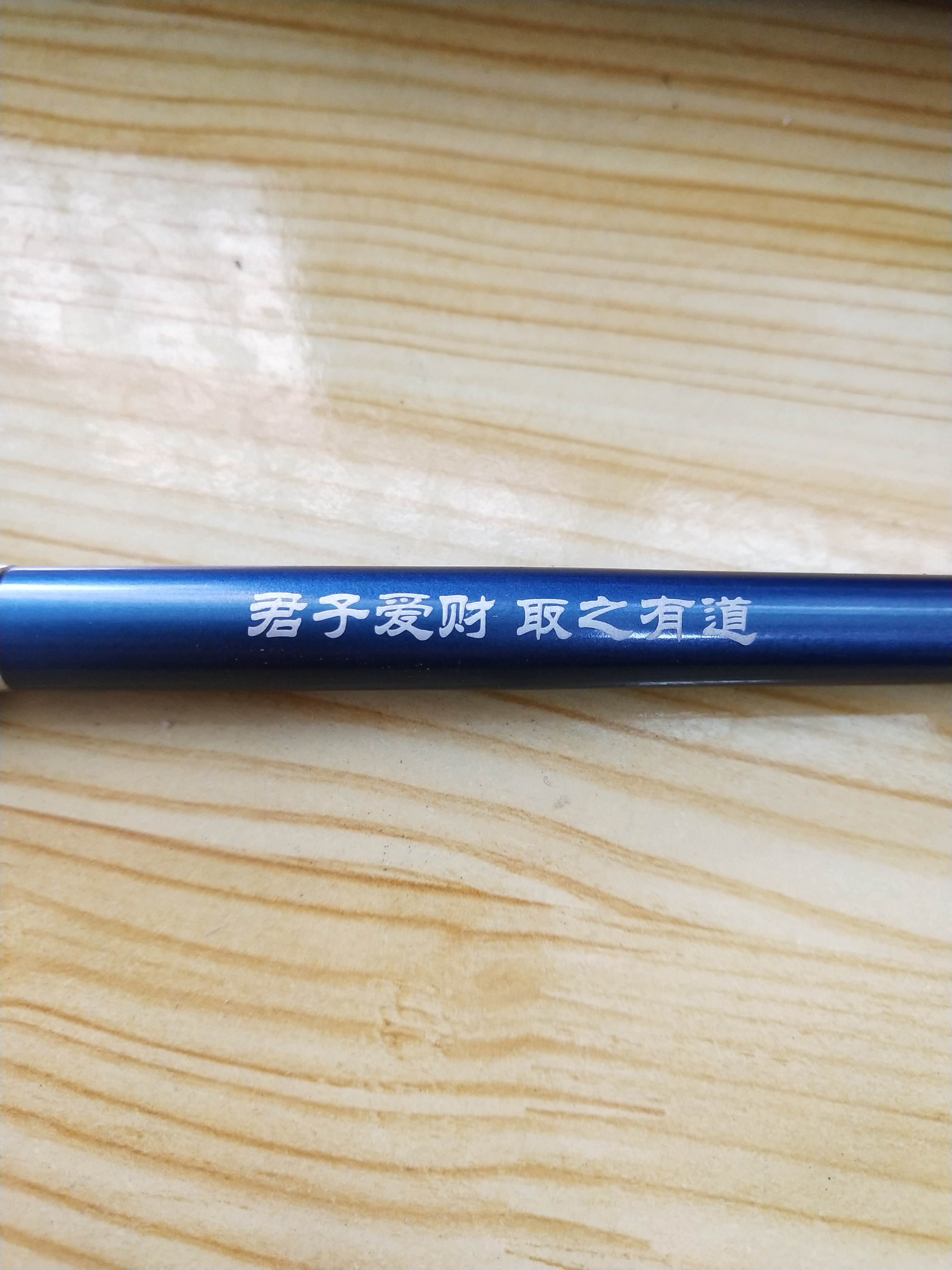

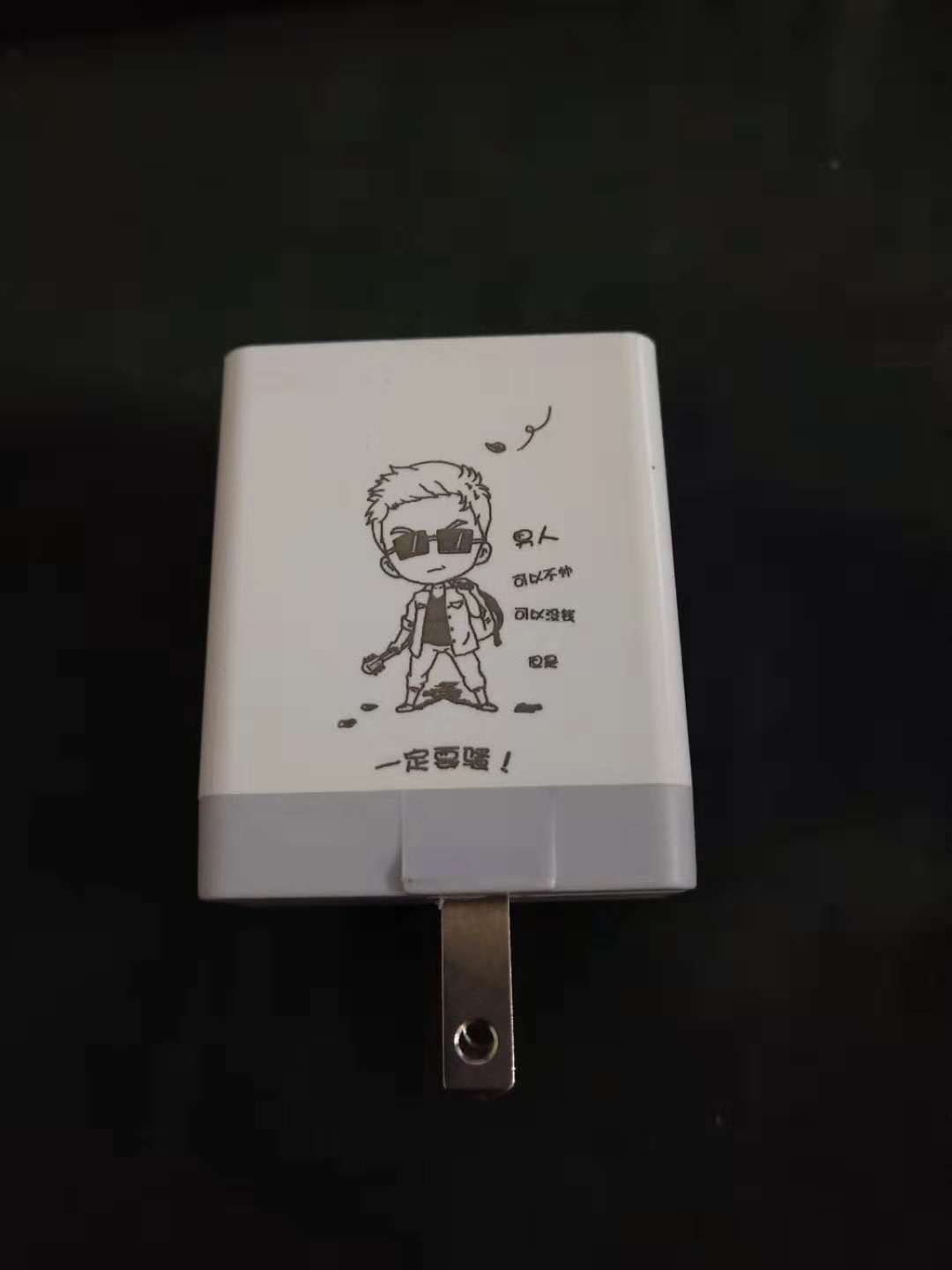

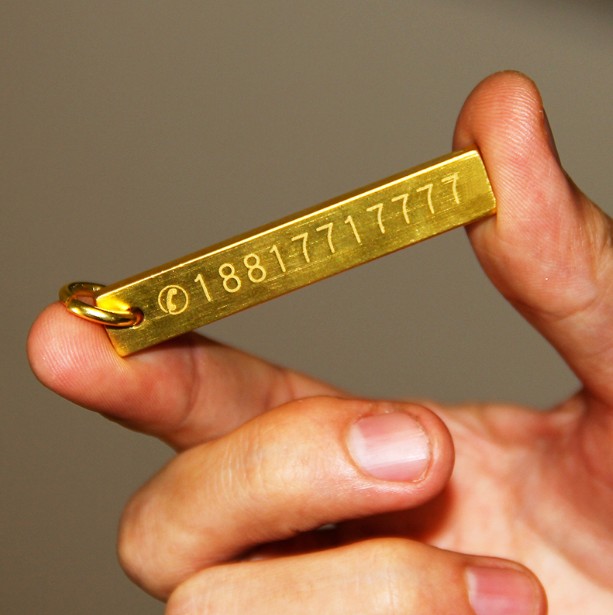

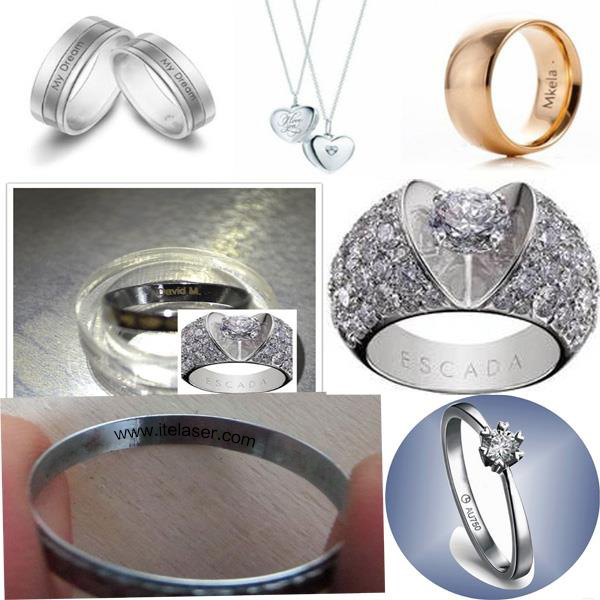

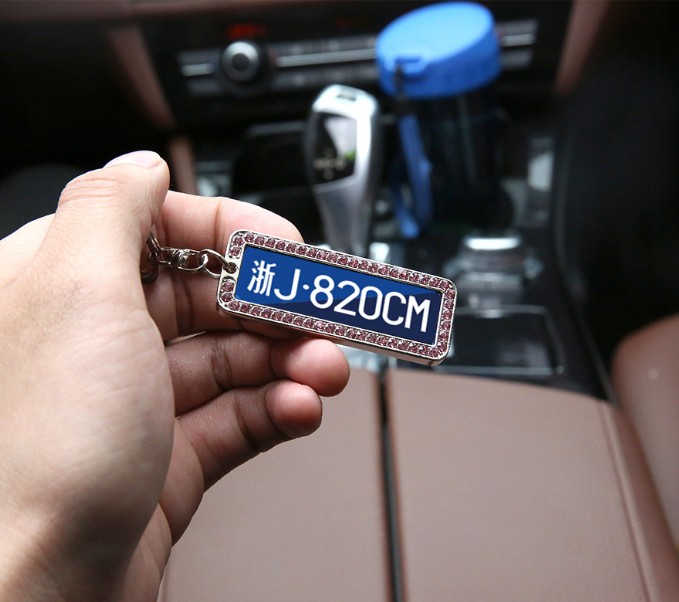

Mobile phone keyboard,plastic translucent keys,electronic components, integrated circuits, electrical appliance, sanitary ware,accessories,communication products,knives,eyeglass and clocks,jewelry,auto parts, cooking utensils,stainless steel products.ITM-FD DESKTOP FIBER MARKING MACHINE
Model | ITM-FD |
Laser Power | 10W 20W 30W |
Laser wavelength | 1064nm±10nm |
Q-frequency | 20KHz~100KHz |
Divergence | 0.3mard |
Marking range | 110*110mm / 150*150mm / 200*200mm / 300*300mm |
Minimum line width | 0.01mm |
Minimum character | 0.1mm |
Marking speed | 10000mm/s |
Marking depth | 0~0.5mm |
Engraving line speed | ≤ 7000mm/s |
Repeatability accuracy | ±0.001mm |
Beam quality | M2:1.2~1.8 |
Marking format | Graphics, text, bar codes, two dimensional code, automatically marking date, batch number, serial Number, frequency, etc |
Graphic format supported | bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc |
Working voltage | 220V±10% / 50Hz/4A |
Unit power | < 0.5kw |
Use of the environment | Clean and dust free or dust less |
Working condition:Humidity | Free of condensed water |
Laser module life | > 100000hours |
Advantages in product details
|

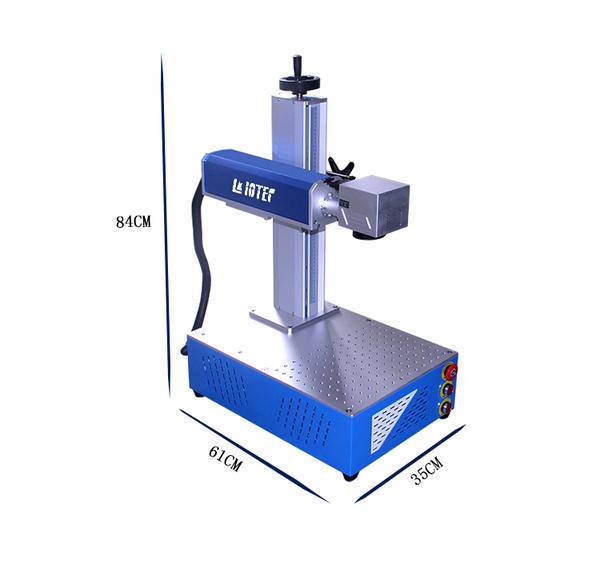

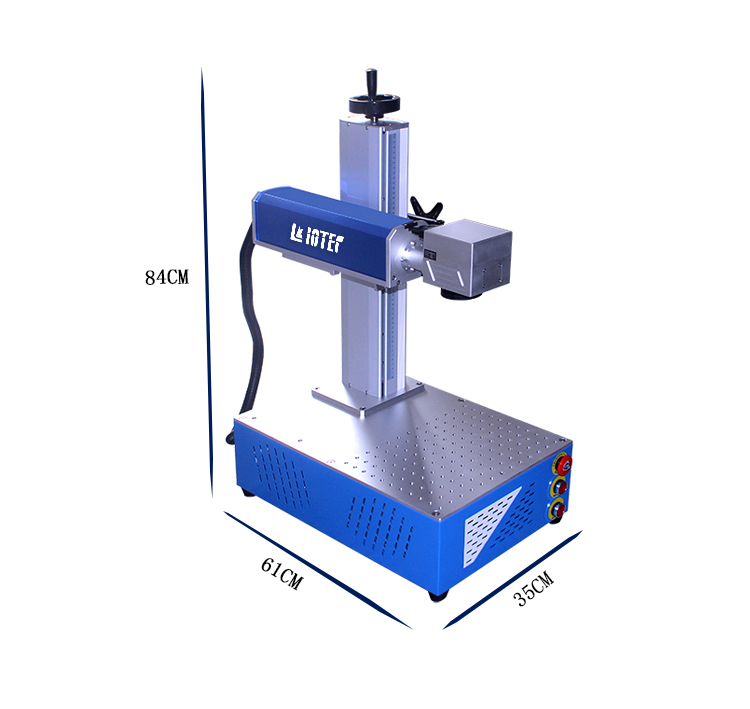

ITM-FD DESKTOP FIBER MARKING MACHINE FORMAT The desktop laser marking machine uses a desktop platform to improve product accuracy and stability. The new lifting column and double red light auto focus for precise positioning and marking of products.
|
|
|

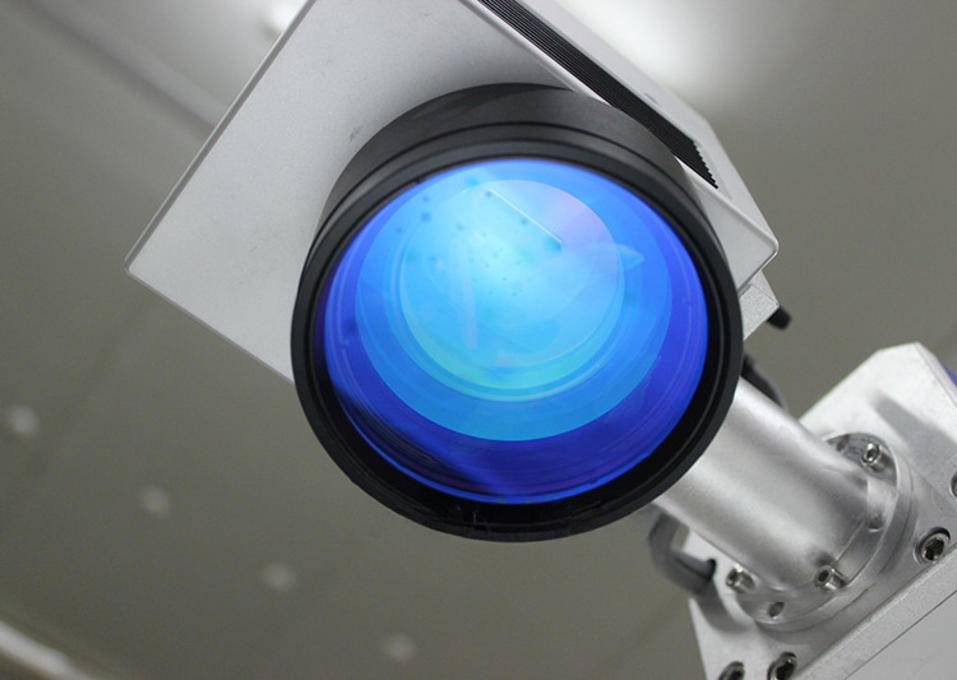

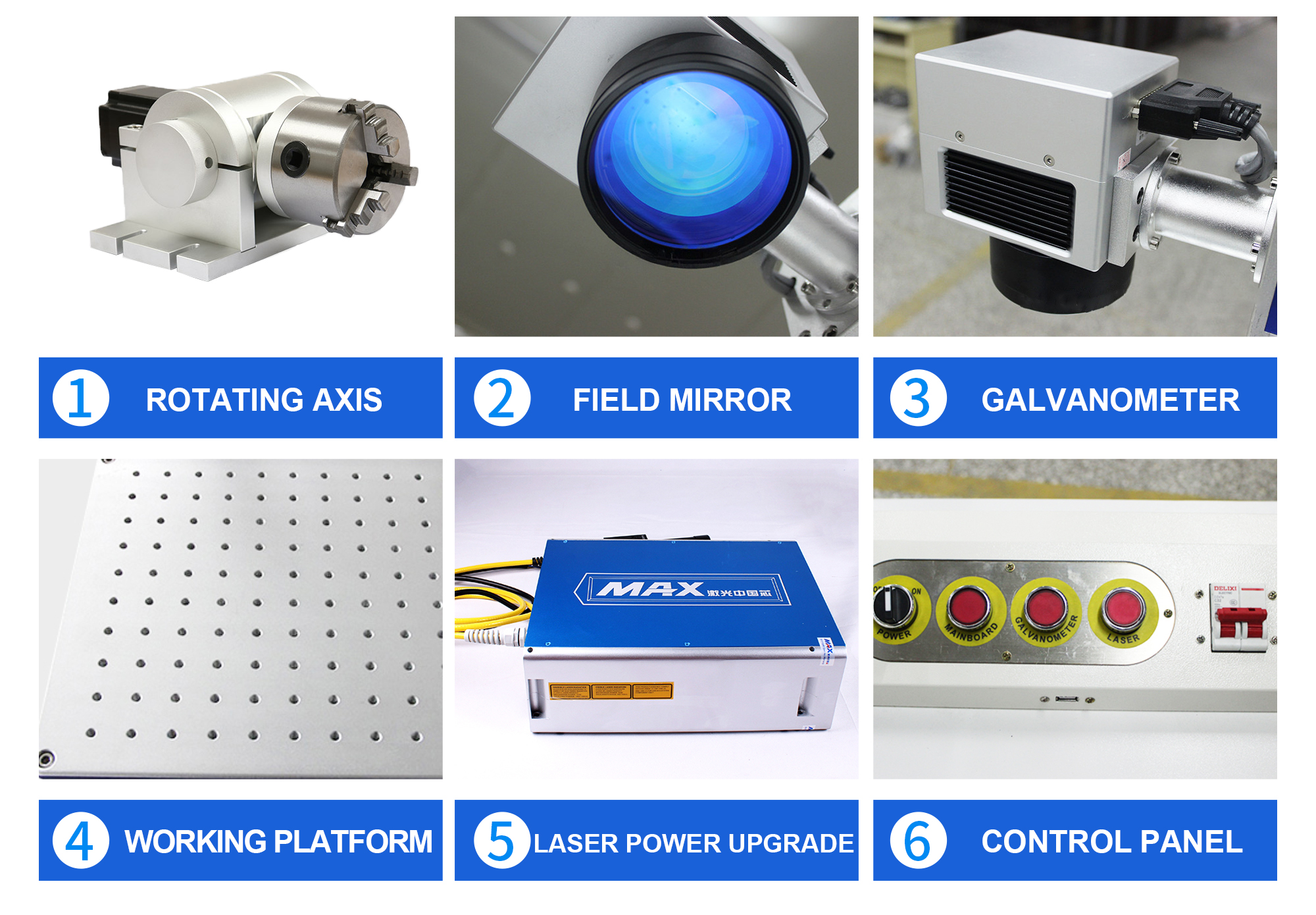

FIELD MIRROR |
|

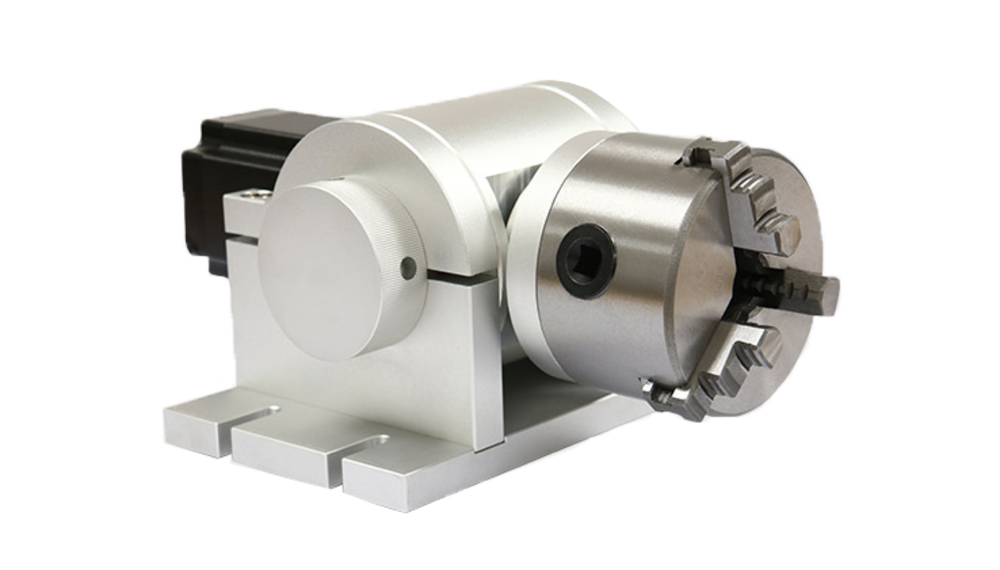

ROTATING AXIS |
|
|

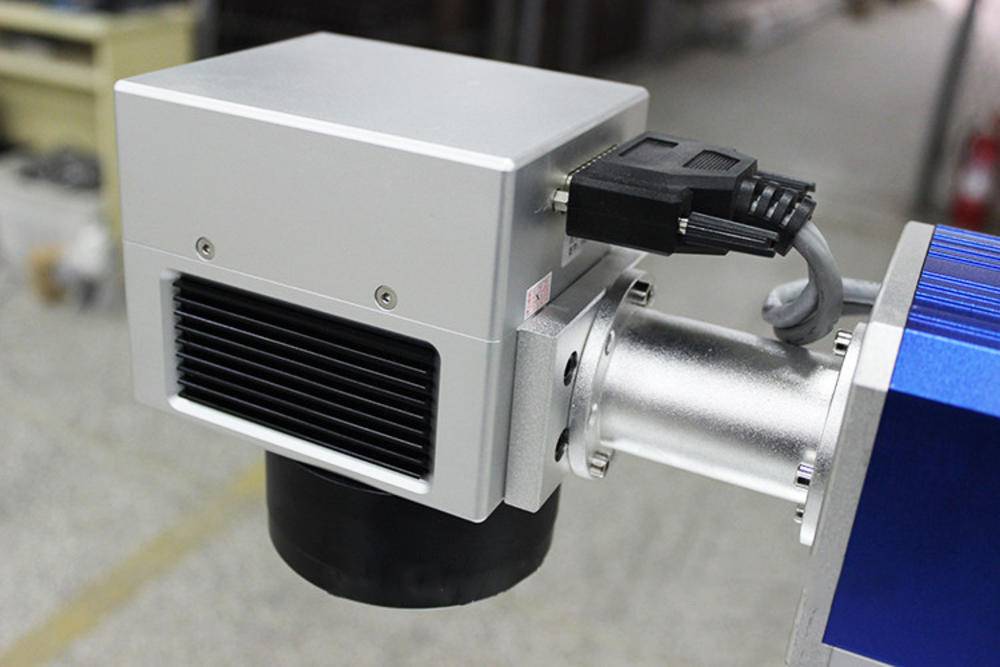

GALVANOMETER |
|

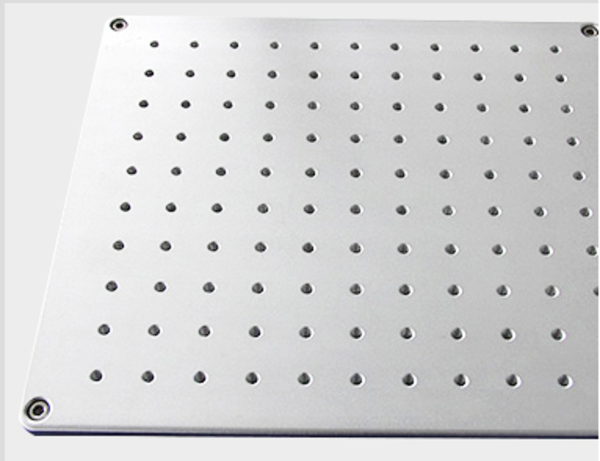

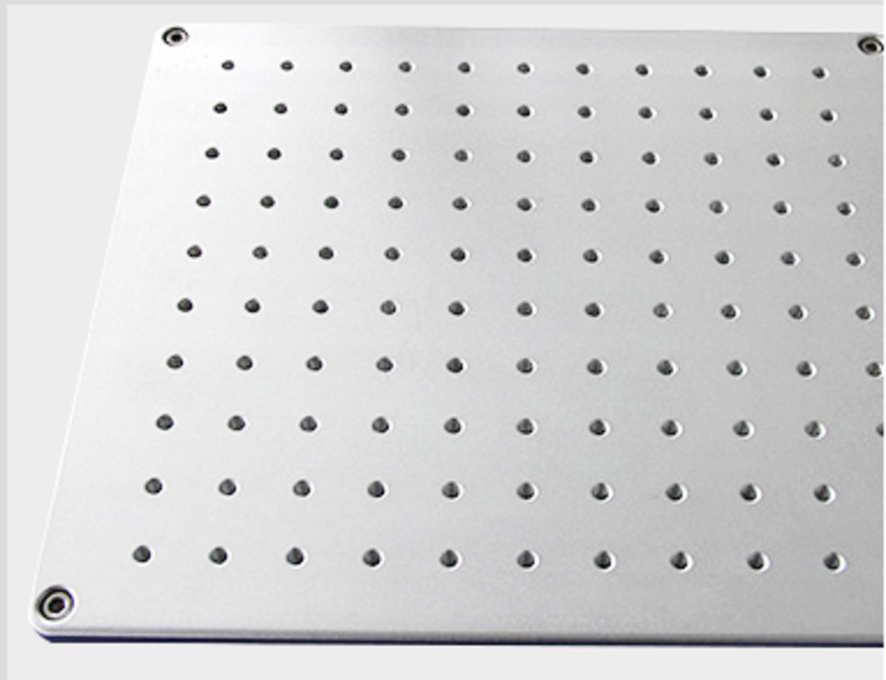

WORKING PLATFORM (PROFESSIONAL AND FLEXIBLE) |
|
|

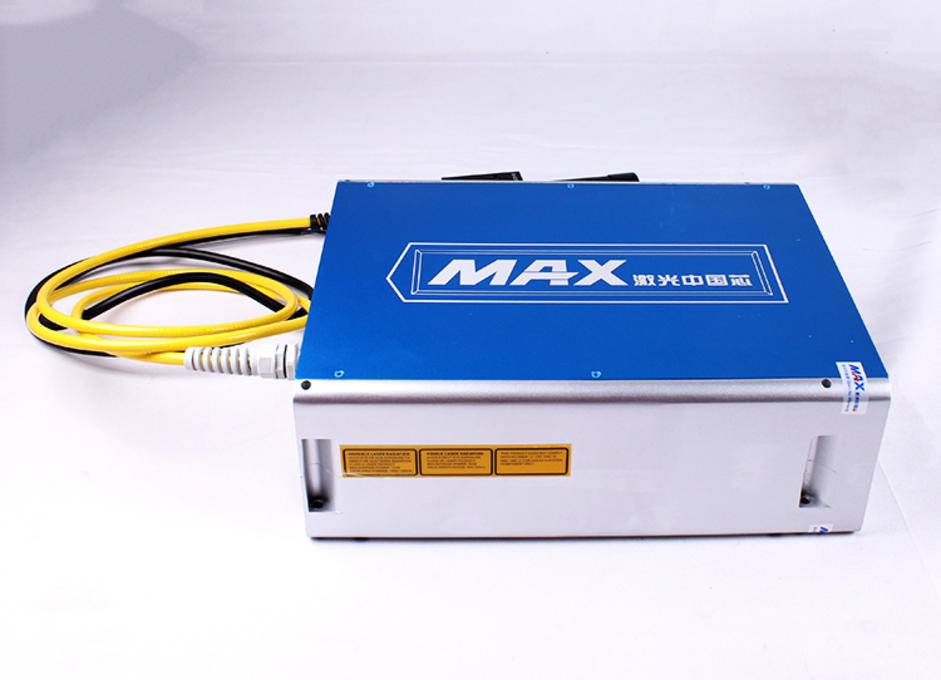

LASER POWER UPGRADE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
